Author: SEO leadmetrics.ai

Most specifiers never see where their road marking material comes from, and manufacturers of thermoplastic paints rarely open the doors. That is a shame, because almost every property you will later argue about on site is fixed inside the plant. Binder grade, pigment loading, bead content and batch consistency are all decided long before a kettle is lit. This article walks through what actually happens in production and what it means for the material arriving at your works.

Key Takeaways

• Thermoplastic is manufactured as a dry blend. There is no solvent, so formulation controls performance almost entirely.
• Batch records tie a delivered pallet back to specific raw materials and test results, which is the basis of any real warranty claim.
• A trader can supply the same looking product without any ability to explain or repeat what is inside it.

What Actually Goes Into the Batch

A thermoplastic road marking material is a dry blend of four component groups, and the proportions between them decide almost everything about how the finished line behaves.

The binder is a hydrocarbon resin system, often modified with plasticiser and oil to control brittleness at low temperature and softening at high temperature. Filler, usually calcium carbonate or graded quartz sand, makes up the bulk and supplies abrasion resistance. Pigment provides colour, with titanium dioxide doing the work in white formulations and chrome free pigments in yellow. Glass beads are added as intermix so that the material can renew its own night performance as it wears.

For the Gulf market, binder grade is the decision that matters most. It is also the one most easily downgraded without any visible change to the product.

Yellow formulations follow the same structure with a different pigment package. The change sounds trivial and is not, because yellow pigments differ from titanium dioxide in opacity, in cost and in how they age under ultraviolet light. A yellow line will normally carry a lower retroreflectivity target than a white one for exactly this reason, and specifying the same value for both is a common specification error.

Raw Material Intake and Testing

Production quality starts at the gate. Every incoming raw material is sampled and checked against the specification the formulation depends on, and no batch is released into production before those checks pass.

Resin is checked for softening point and colour, because a resin that is off grade will shift the behaviour of the finished material at exactly the temperatures that matter here. Filler is checked for particle size distribution and moisture, since damp filler causes problems in the melt. Pigment is checked for whiteness and consistency, because low pigment loading produces a slightly grey line that will fail a luminance test. Glass beads are checked for roundness and gradation.

Each accepted delivery is logged against a lot number. That number is what later allows a finished pallet to be traced back to the exact materials that went into it.

Storage between intake and production is part of the quality chain and is easy to neglect. Filler and finished material both need to stay dry, because moisture trapped in the product causes foaming and poor flow the moment it reaches kettle temperature on site. A plant that tests raw materials carefully and then stores them badly has gained nothing.

Supplier qualification sits behind all of this. A plant that buys resin from whichever source is cheapest each quarter will produce material that varies from batch to batch, however carefully it tests. Stable supply relationships are unglamorous and they are a large part of why one manufacturer delivers consistent product and another does not.

From raw material intake to a traceable pallet leaving the plant

Hot Blending and Why Sequence Matters

Blending is done hot, in a heated mixer, and the order in which materials are introduced changes the result. This is process knowledge rather than recipe knowledge, and it is where experienced manufacturers separate themselves.

The binder is brought up to temperature first and held there so it flows properly. Filler is then introduced gradually under agitation so that the binder fully wets every particle. Adding filler too quickly leaves dry agglomerates that show up later as weak points in the applied line. Pigment follows, and it must be dispersed completely or the finished marking will show colour variation. Intermix beads go in last and at controlled temperature, because excessive heat or over mixing fractures them and a fractured bead does not retroreflect.

Mixing time and temperature are both recorded. Over processing degrades the binder just as surely as under processing leaves it poorly blended.

Temperature control during blending is the other constant. Holding the melt too hot for too long degrades the binder, which shows up later as a line that becomes brittle sooner than it should. Every batch therefore has a time and temperature envelope rather than simply a target, and staying inside it is a matter of process discipline rather than equipment.

This is where experienced manufacturers of thermoplastic paints separate themselves from operations that simply follow a recipe.

Batch Quality Control Before Release

A batch is not finished when the mixer stops. A sample is drawn and tested against the approved formulation before any of it is packed for despatch.

Softening point confirms that the binder system will hold its shape at road surface temperature rather than tracking under traffic. Whiteness or luminance is measured against the target so the material will pass a colour requirement on site. Bead content is verified, since it cannot be checked once the material is packed. Flow and workability are assessed to confirm the material will lay properly through screed or extrusion equipment at normal application temperature.

Results are recorded against the batch number and retained. If a question arises about material performance two years later, this record is the only thing that can answer it.

Retained samples matter as much as the test results. Keeping a physical sample from each batch means a question raised in eighteen months can be answered by testing the original material rather than by argument. It is inexpensive to do and it is one of the clearest signals that a supplier expects to stand behind what it produces.

What a batch is tested for before it is allowed to leave the plant

What Traceability Gives You on Site

Traceability sounds like paperwork until something goes wrong, at which point it becomes the difference between a resolved problem and an unresolvable argument.

If a section of marking underperforms, a batch record lets you establish whether the material met specification when it left the plant. That single fact separates a material problem from an application problem, and the two have completely different remedies. It also lets a manufacturer reproduce the same formulation for a later phase of the same road, so that markings installed two years apart still match in colour and performance. A trader buying from whichever source is cheapest that quarter cannot offer either guarantee.

Revive Middle East Paints manufactures thermoplastic material at its plant in Emirates Industrial City, Sharjah, and installs it across the Emirates. You can see the projects we have delivered for context.

There is a second, less obvious benefit for a road authority. Consistent formulation across phases means the network ages predictably, which makes a planned remarking programme possible. When material varies from batch to batch, sections installed in the same month start failing at different times and maintenance becomes reactive. Our overview of traffic management services explains how that planning works in practice.

In short, ask three questions of any supplier. Where was this made, what is in it, and can you make it again next year to the same specification. A manufacturer answers all three from records. A trader can usually answer none of them.

Manufacturers of thermoplastic paints who retain batch records can answer a performance question years later, which a trading intermediary cannot.

Conclusion

Manufacturers of thermoplastic paints decide most of what happens on your road long before the material reaches site. Raw material control, blending discipline and honest batch testing are what make one white granular product behave differently from another that looks identical. When you are buying, ask where the material was made, ask for the batch record, and ask whether the supplier can reproduce the same formulation next year. Get in touch to discuss supply for your project.

Road marking removal in the UAE gets far less attention than application, and it causes far more lasting damage when it goes wrong. A badly removed line leaves a scar that drivers still read as a marking at night, which is a genuine safety problem rather than a cosmetic one. This article compares the three removal methods used here, explains the damage each one can do, and sets out how to choose without wrecking the surface underneath.

Key Takeaways

• A ghost marking left after poor removal can still be read by drivers at night, especially in wet conditions.
• Water jetting is the least damaging method on asphalt. Grinding is the fastest and the most destructive.
• Removal method should be selected from the substrate and the marking material, not from whatever plant is already on site.

Why Removal Quality Matters More Than Speed

Removing a marking is not simply the reverse of laying one. The material has bonded into the surface texture, and taking it out always takes some of the road with it.

Two problems follow. The first is the ghost marking, a visible outline left where the removed line used to be. It appears because the road under the marking has been shielded from wear, weathering and dust for years, so it is a different colour and texture from its surroundings. At night, and especially in the wet, drivers can still read that outline as a live marking. The second is surface damage. Aggressive removal opens the asphalt, which then ravels, holds water and deteriorates faster than the surrounding surface.

On a live carriageway, both problems are safety issues rather than presentation issues, which is why removal deserves the same specification attention as application.

There is a commercial dimension as well. Damage caused during removal usually falls outside the marking contract and lands with whoever owns the road, which means it is discovered long after the crew has left. Specifying the removal method, and inspecting the surface immediately after removal rather than after reinstatement, keeps responsibility where it belongs.

High Pressure Water Jetting

Water jetting, sometimes called hydro blasting, uses water at very high pressure to break the marking material away from the surface without cutting into it.

It is the gentlest of the three methods on asphalt, because water follows the texture of the road rather than machining a flat plane across it. That makes it the preferred choice on a surface that has to stay in service. It removes thermoplastic and cold plastic effectively, it produces very little ghosting when done properly, and it generates no airborne dust. The trade offs are output rate, the need to manage water and paint residue as a waste stream, and a higher cost per square metre than grinding.

For most permanent works on trafficked UAE roads, water jetting is the method that leaves the road in the best condition.

Pressure and nozzle configuration both need controlling. Too little pressure leaves residue keyed into the texture, which then shows as a patchy ghost. Too much begins to cut into the asphalt matrix and undoes the main advantage of the method. This is operator dependent work, and experience with the particular surface type matters more than the rating of the machine.

Water management is the practical constraint on jetting in the UAE. The residue has to be collected rather than allowed to run into a drainage system, and on a long run that means either a vacuum recovery unit working alongside the jetting head or a containment arrangement that adds time to the operation. Pricing that in at tender avoids an awkward conversation on site.

For asphalt that has to stay in service, water jetting is the road marking removal method that leaves the surface in the best condition.

The three removal methods compared on damage, output and cost

Grinding and Scarifying

Grinding uses rotating cutters or a scarifying head to mill the marking off the surface mechanically, taking a thin layer of the road with it.

It is by far the fastest and cheapest method, and on concrete or on a surface that is about to be resurfaced anyway it is entirely reasonable. On asphalt that has to remain in service it is the most damaging option available. It leaves a milled texture that is clearly visible as a scar, it opens the surface to water ingress and ravelling, and it is very unforgiving of operator error since a moment of excessive depth cannot be undone.

Grinding is best reserved for concrete surfaces, for temporary layouts and for sections programmed for resurfacing shortly afterwards.

Grinding also generates significant airborne dust unless the head is enclosed and extracted, which is a real consideration on live roads and in built up areas across the Emirates. Where the works sit near occupied buildings, that alone can rule the method out regardless of its cost advantage. Dust control obligations normally sit inside the wider traffic management and site safety arrangements for the works.

Shot Blasting

Shot blasting propels steel abrasive at the surface within an enclosed head and recovers both the shot and the debris as it works.

It sits between the other two methods on aggression and on cost. It removes thermoplastic well, it leaves a uniform texture rather than the directional scoring that grinding produces, and the enclosed head controls dust and allows the abrasive to be recycled. It is more aggressive than water jetting and will lightly texture the road surface, which on a sound asphalt is usually acceptable and on a fragile or thin surface is not.

It performs particularly well on concrete and on large open areas such as aprons and yards, where output matters and the substrate can take it.

Recovery of the abrasive is what makes shot blasting practical at scale. The head collects the shot along with the removed material, separates the two and returns the shot to the hopper, so consumption stays low across a large area. That closed loop also keeps the working area much cleaner than open blasting, which matters when the adjacent lane is carrying traffic.

Selecting a road marking removal method from the substrate rather than from the available plant is what prevents long term damage.

The four risks that turn a removal job into a long term road defect

Choosing a Method Without Scarring the Road

The choice should start with two facts. What is the marking made of, and what is it sitting on. Those two answers narrow the options quickly.

Thermoplastic and cold plastic on asphalt that must stay in service point firmly toward water jetting. Any material on concrete tolerates shot blasting or grinding comfortably. Thin cold applied paint often needs far less aggression than crews assume, and over specifying the method causes unnecessary damage. Where the section is due for resurfacing shortly, grinding becomes the sensible economic choice because the scar disappears under the new layer.

Whichever method is selected, plan the reinstatement at the same time. If a new marking is going back in the same place, the removal has effectively become surface preparation and should be treated to that standard. Our road line marking services cover removal and reapplication as a single sequence.

Whatever method is chosen, plan for the ghost. If a marking is being permanently removed rather than replaced, the shielded strip left behind will remain visible for a long time and drivers will read it, particularly at night and in the wet. Surface treatment over the removed line is sometimes the only honest answer, and it needs to be priced at tender rather than discovered afterwards. The principles behind road surface marking visibility apply just as much to a line you are trying to erase.

Removal is also the moment to check the surface beneath. Once the old marking is off, defects that were hidden under it become visible, and repairing them before the new line goes down is far cheaper than reopening the closure later.

Plan road marking removal and reinstatement as a single sequence inside the same closure wherever the programme allows it.

Conclusion

Road marking removal in the UAE deserves the same specification discipline as application, because the consequences of getting it wrong stay on the road for years. Water jetting protects asphalt that has to remain in service. Shot blasting suits concrete and open areas. Grinding is fast and cheap and belongs where the surface is about to be replaced. Choose from the substrate rather than from the plant on site. Contact Revive Middle East Paints to discuss removal and remarking on your network.

Road marking surface preparation is the least glamorous part of a marking package and the part that decides whether the line survives. When a new marking lifts away in sheets, the material is almost never at fault. Something was left on the road that stopped the bond forming. This article covers the four preparation failures that cause most adhesion problems in the UAE, and what a competent crew does about each of them before any material is heated.

Key Takeaways

• Most marking failures are substrate failures. A perfect material on a dusty road will still lift away cleanly.
• Trapped moisture is the failure you cannot see, and it is worst in coastal areas after overnight condensation.
• Primer must be matched to the substrate. One primer does not suit both concrete and aged asphalt.

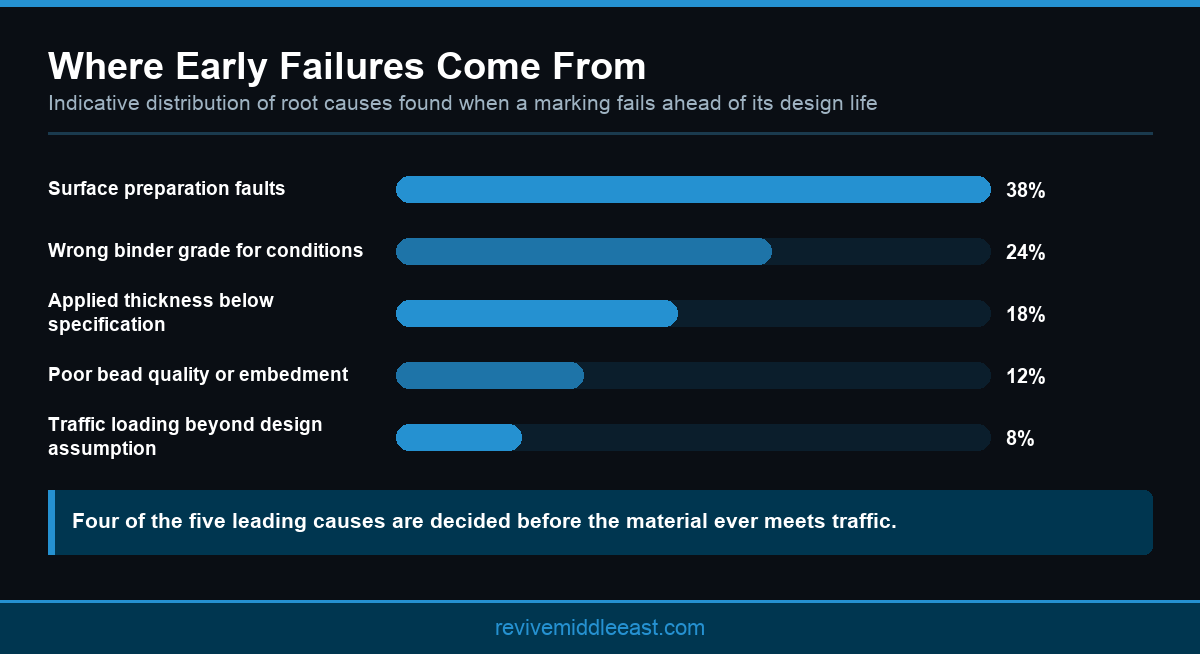

Why Most Marking Failures Are Substrate Failures

There is a simple diagnostic when a marking fails early. Look at the underside of the material that came away, and look at the road it came off.

If the marking lifts cleanly and the road beneath is bare, the bond never formed and the cause is preparation. If material has torn and left fragments keyed into the surface, the bond was sound and the material itself was overloaded or wrongly graded. In practice the first pattern is far more common. A thin layer of dust, a film of moisture or a trace of oil acts as a release layer between the hot material and the road, and no amount of material quality compensates for it.

This matters commercially as well as technically, because the two patterns point to completely different parties and completely different remedies.

There is a third pattern worth recognising. If the marking has lifted and taken a thin layer of the road surface with it, the bond was stronger than the road. That points to a weak or friable surface rather than to preparation or material, and the remedy sits with the surfacing rather than with the marking contractor. Identifying which of the three patterns you are looking at takes about a minute on site and settles most disputes.

Cleaning: Sweeping, Blasting and Dust

Cleaning is where most of the preparation effort goes, and in the UAE it has to deal with a dust load that most specifications were never written for.

Mechanical sweeping is the baseline and removes loose debris and the bulk of surface sand. It is rarely sufficient on its own for aged surfaces. Where the road is polished, contaminated or carries old marking residue, abrasive blasting or a mechanical sweep with a wire brush opens the surface and restores texture for the material to key into. Compressed air is used for the final pass immediately before application, because sand blown back across a swept surface by wind or by passing traffic will undo the earlier work within minutes.

The practical rule is that the final clean happens as close to application as the sequence allows, not at the start of the shift.

Old marking residue is a category of its own. A previous line that has been partly removed leaves a patchwork of bonded fragments and bare road, and material laid over that will bond well in some places and not at all in others. The result is a line that fails in patches for no visible reason. Where an old marking is being replaced, the removal has effectively become the surface preparation and needs to meet the same standard.

Thorough road marking surface preparation is the cheapest durability improvement available on any marking package.

The six checks that decide whether a marking bonds or lifts

Moisture: The Failure You Cannot See

Moisture is the most damaging contaminant precisely because it leaves no trace a supervisor can point to.

When hot thermoplastic is laid over a damp surface, the trapped water flashes instantly to steam at the interface. That steam has nowhere to go and forces the material away from the road as it forms, producing a bond that looks perfect for weeks and then releases under traffic. Coastal humidity across the Emirates makes this a routine risk, because overnight condensation leaves a film on the surface that is often invisible by first light while the substrate is still holding moisture in its texture.

Competent crews test rather than judge. A simple plastic sheet taped down for a short period will reveal moisture rising out of the surface, and the application window is set from that rather than from the appearance of the road.

Timing the working window around moisture is a planning decision rather than a site decision. On coastal routes the surface may not be reliably dry until well into the morning, which conflicts directly with the desire to work at night when the road is cooler and closures are easier. Resolving that conflict sensibly is one of the genuine skills in programming marking work in the Emirates.

New Asphalt and the Curing Question

Freshly laid asphalt presents the opposite problem. The surface looks ideal, clean and textured, but it is still releasing light oils from the bitumen binder.

Those oils migrate to the surface and interfere with adhesion, and they can also soften the marking material from below over time. This is why permanent markings are normally held back for a curing period after surfacing, and why temporary markings are often used in the interim to keep the road operating. The required period depends on mix design, layer thickness and weather, and in Gulf conditions high surface temperatures both accelerate the release of those oils and increase the risk while they are still present.

Where programme pressure makes waiting impossible, the honest answer is a temporary marking followed by permanent work later, not a permanent marking installed early and hoped for.

The same logic applies to newly laid concrete, which holds mix water for far longer than most programmes assume. Concrete surfaces need both a curing period and mechanical removal of the weak surface layer before any marking is considered. Rushing either step produces a line that lifts cleanly within months.

Primer Selection by Substrate

Primer is not a universal product and using the wrong one is close to using none at all.

Sound, textured asphalt in good condition often needs no primer, because thermoplastic keys mechanically into the surface. Aged, polished or oxidised asphalt has lost that texture and benefits from a primer that penetrates and re establishes a bonding layer. Concrete is a different problem entirely. It is smooth, it is chemically distinct, and it usually carries surface laitance that must be removed mechanically first. Concrete needs a primer formulated for it, and even then many specifiers choose cold plastic instead where loading is heavy.

Application rate and drying time both matter. Over applying primer creates a soft layer that fails under the marking, and marking over primer that has not flashed off traps solvent at the interface. Our material comparison guide covers when to change material rather than persist with primer.

A short verification step protects everything above. Before the crew mobilises, walk the section and confirm the substrate is what the specification assumed. Surfaces change between design and construction more often than anyone expects, and a primer chosen for asphalt that turns out to be laid on a concrete apron will fail regardless of how carefully it is applied.

Where preparation is genuinely impossible within the available window, the honest response is to reprogramme rather than to proceed. A marking installed onto a surface that was not ready will fail, and it will fail after the crew has demobilised and the closure has been surrendered. Our road line marking services are sequenced so that preparation and application sit inside the same closure wherever the programme allows it.

Treat road marking surface preparation as a specified activity with its own hold points, not as something the crew fits in before the real work starts.

Primer selection and preparation requirement by substrate

Conclusion

Road marking surface preparation costs time rather than money, and it delivers more durability per dirham than any other decision on a marking package. Clean thoroughly and clean late, test for moisture rather than judging it by eye, respect the curing period on new asphalt, and match primer to substrate. Do those four things and the material will do what the specification promised. Speak to our team about preparation requirements on your project.

Reflective thermoplastic road markings in the UAE do their most important work in the hours when nobody is inspecting them. A line that looks perfect at noon can be nearly invisible at 2 am, and the difference has almost nothing to do with the white material itself. It comes down to glass beads, how they are specified, how deep they sit and how quickly Gulf conditions take them away. This article explains how that system works and how to hold a contractor to it.

Key Takeaways

• Night visibility comes from glass beads acting as lenses, not from the whiteness of the marking material.
• Embedment depth of roughly half the bead diameter is the target. Too deep and the bead gathers no light. Too shallow and traffic removes it.
• Retroreflectivity should be specified twice, once at handover and once as a maintained minimum through the defects period.

How a Glass Bead Actually Returns Light

A glass bead embedded in a road marking behaves as a small spherical lens. Headlight beams enter the exposed surface of the bead, refract as they pass through the glass, reflect off the pigmented material behind it, and leave along approximately the path they arrived on.

That behaviour is called retroreflection, and it explains a familiar effect. The marking looks brilliant to the driver whose own headlights are illuminating it, while looking dull to somebody standing at the roadside. The light is being sent back to its source rather than scattered evenly. It also explains why a marking loses all its night performance the moment the beads are gone, even though the white line is still clearly there in daylight.

Bead quality decides how efficiently this happens. Irregular, fractured or cloudy particles do not focus light properly and contribute almost nothing.

This also explains a common misunderstanding on site. A supervisor who inspects a new marking in daylight and pronounces it excellent has verified the colour and the geometry and nothing about the property that matters after dark. Night performance has to be measured with an instrument or inspected at night. There is no way to see it at noon.

What RL Means and How It Is Measured

Retroreflectivity is quoted as an RL value in millicandelas per square metre per lux. In plain terms, it measures how much light comes back to the driver eye for a given amount of light going out. Higher numbers mean a brighter line at night.

European practice under BS EN 1436 groups performance into classes, with each class setting a minimum RL value that the marking must meet. Measurement is done with a retroreflectometer, either as a handheld unit walked along the line or as a mobile unit mounted on a vehicle. The critical point is where readings are taken. A single reading at a convenient location proves nothing. Readings should be taken at intervals along the run and reported with their chainage.

Specify two values. An initial value demonstrated at handover, and a maintained minimum that must still be met later in the defects period. Only the second obliges the contractor to have used decent beads.

Where readings are taken matters as much as the value itself. Retroreflectivity varies along a run because bead placement varies, and a contractor selecting the measurement location will naturally select a good one. Specify that readings are taken at fixed intervals, that each is reported with its chainage, and that the assessment uses the average and the lowest reading rather than the best.

Indicative pattern of retroreflectivity decline, showing why measurement beats visual inspection

Embedment Depth: The Number Nobody Specifies

Embedment is how far the bead sits into the marking material. It is rarely written into a specification and it is one of the most common reasons a new line underperforms from day one.

If a bead is pressed in too deep, very little of its surface is exposed and it cannot gather enough light to retroreflect. If it barely touches the surface, there is not enough material gripping it and traffic will sweep it away within days. The working target sits at roughly half to sixty per cent of the bead diameter below the surface. Achieving that is a matter of timing. Beads must land while the thermoplastic is still hot enough to accept them and cool enough to hold them.

This is why bead application is fixed immediately behind the applicator rather than treated as a separate pass. It is also why a crew that is running behind schedule tends to produce markings with poor night performance.

Application temperature is the lever that controls embedment, and it moves quickly. Material that has cooled slightly before the beads land will hold them too shallow. Material that is still too hot lets them sink out of reach. This is why bead dispensers are fixed to the applicator rather than run as a separate operation, and why a crew rushing to finish before handback tends to produce a line that measures poorly on its first night.

Reflective thermoplastic road markings only perform when the beads sit at the right depth, which makes embedment a specification issue rather than a site detail.

Intermix Beads Compared With Drop On Beads

Two different bead populations work in a thermoplastic marking, and they do different jobs at different points in the life of the line.

Drop on beads are applied to the hot surface at the moment of laying. They sit at the top of the film and they provide all of the retroreflectivity you measure at handover. Intermix beads are blended through the material during manufacture. They contribute nothing on day one, because they are buried. Their role begins as the surface wears down and exposes fresh beads that have been waiting inside the film. In effect the marking regenerates its own night performance as it abrades.

A material with no intermix beads will show a sharp drop in performance once the drop on layer is gone. It is worth confirming the intermix content when you buy, because it is invisible on site and easy to leave out.

Specifying intermix content is straightforward once you know to ask. State a minimum percentage by weight in the material specification and require the batch record to confirm it. Because the beads are inside the product rather than on it, this is one of the few quality attributes that genuinely cannot be checked on site, which makes the paperwork the only control available to you.

The bead properties worth writing into a specification

Why Retroreflectivity Falls Faster in the Gulf

Two local conditions attack bead performance in ways that temperate specifications never account for, and both act well before the marking itself wears out.

The first is sand. Fine wind blown particles polish the exposed bead surfaces and, worse, settle into the texture of the line. A layer of dust across the beads blocks light from entering them at all, which is why a marking can recover measurably after rain or after mechanical sweeping. The second is surface temperature. A binder that softens in the heat allows beads to sink further into the film over time, quietly moving them past the useful embedment depth without any wear taking place.

Both effects mean night performance in the UAE should be measured rather than assumed. The related mechanisms behind material ageing are covered in our article on why road markings fade early here.

There is a maintenance opportunity in this that most networks miss. Because dust burial is reversible and bead wear is not, a scheduled mechanical sweep on exposed routes recovers real performance at a fraction of the cost of remarking. Building sweeping into the maintenance cycle can extend the useful life of the road line marking asset by a meaningful margin before reapplication becomes necessary.

Reflective thermoplastic road markings therefore need periodic measurement in this region rather than an assumption that they are still working.

Conclusion

Reflective thermoplastic road markings in the UAE succeed or fail on the quality of a system most specifications barely mention. Beads must be well formed, correctly graded and embedded to the right depth, and there must be intermix material waiting inside the film for the years after the surface layer has gone. Specify an initial and a maintained RL value, measure along the run, and treat night performance as something you check rather than something you hope for. Contact our team to discuss retroreflectivity requirements on your project.

Choosing a thermoplastic paint road marking over cold applied paint or MMA cold plastic is one of the earliest decisions on a road package, and it is regularly made on price alone. That is a mistake in the UAE, because the three materials behave very differently once surface temperatures climb and sand starts working on the line. This article sets the three families side by side and gives you a way to choose based on traffic volume, substrate and how long the layout needs to last.

Key Takeaways

• Cold paint is the cheapest to install and the most expensive to maintain on any road carrying real traffic.
• Thermoplastic is the default for UAE carriageways because it combines depth of material with a set time short enough for night closures.
• MMA earns its premium on concrete and on high stress areas, not across a whole scheme.

The Three Material Families at a Glance

Permanent road marking in the UAE is dominated by three material families, and they differ in how they set rather than in what they look like. Cold applied paint dries by evaporation. Thermoplastic solidifies by cooling from a melt. MMA cold plastic cures through a chemical reaction between a resin and a hardener.

That difference in setting mechanism drives everything else. A material that dries by evaporation loses most of its wet volume, so a coat laid at half a millimetre wet finishes far thinner. A material that solidifies by cooling loses almost nothing, so specified thickness and delivered thickness stay close. A material that cures chemically forms a bond with the substrate rather than simply sitting on it, which is why it holds on surfaces where the others struggle.

Understanding those three mechanisms is enough to predict most of the performance differences you will see on site. Everything in the sections below follows from them.

One practical consequence is worth stating early. Because cold paint loses most of its wet volume as it dries, the figure quoted in a specification and the figure left on the road are two different things. Thermoplastic and cold plastic both keep almost all of what is laid. When you compare a paint thickness against a thermoplastic thickness you are not comparing like with like, and the gap in delivered material is wider than the numbers suggest.

The three material families compared on the properties that decide performance

Cold Applied Paint: Cheap, Fast and Short Lived

Cold applied paint arrives ready to use and goes down through a spray unit at roughly 0.3 to 0.5 mm wet. It is the fastest material to mobilise, it needs the least equipment, and its rate per square metre is unmatched. On a car park or a temporary layout it is often exactly the right answer.

On a trafficked carriageway in this climate the picture changes quickly. Once the solvent or water has left the film there is very little material holding the beads or resisting abrasion. Wind blown sand removes the surface within months, and the line loses night time performance long before it looks worn in daylight. Repainting then carries its own traffic management cost, which is frequently larger than the paint itself.

Cold paint keeps a genuine role wherever the marking is meant to change. Car park bay layouts, phased diversions and trial arrangements all favour a material that is cheap to install and easy to remove.

Removal cost belongs in the comparison too. Thin paint comes off easily, which is exactly why it suits layouts that will change. A thermoplastic line laid in the wrong place has to be taken off with water jetting or blasting, and that work is slower, more expensive and carries a risk of marking the road surface. Our guide to road marking removal covers what each material demands.

Thermoplastic: The Default for UAE Carriageways

Thermoplastic is supplied as a granular solid, heated on site and laid hot at roughly 2 to 3 mm. That depth of material is the whole point. It carries intermix beads through its full thickness, so fresh reflective surfaces keep being exposed as the line wears down.

The second advantage is set time. A thermoplastic line cools and hardens in well under three minutes, which means a lane can be reopened almost immediately. On UAE roads, where most marking work happens inside a night time closure with a fixed handback time, that property is worth as much as the durability. Binder grade still needs attention, because a formulation intended for a temperate climate will soften and track at Gulf surface temperatures.

For highways, main roads, junctions and any layout expected to stay put, thermoplastic is the sensible default. Our complete guide to thermoplastic road markings covers the specification detail behind that choice.

Binder grade is the detail that decides whether thermoplastic performs as intended here, and it never appears on a delivery note. Two bags of white granules from different sources can behave completely differently once the road surface passes 60 degrees. Asking a supplier which grade they are providing, and asking for the batch record that supports it, separates a manufacturer from a trader within about two questions.

For most UAE carriageway work, a thermoplastic paint road marking is the specification that balances installed cost against the number of closures the road will need over its life.

MMA Cold Plastic: Where the Premium Is Justified

Methyl methacrylate cold plastic cures by reaction rather than by cooling or drying. The result is a marking that chemically keys into the surface, resists deformation under braking and turning loads, and performs reliably on concrete where thermoplastic adhesion can be inconsistent.

The trade offs are cost and site discipline. MMA is considerably more expensive per square metre, it must be mixed accurately on site, and it has a working window that punishes delay. It is also unforgiving of poor preparation, although in fairness so is everything else. Most schemes use it selectively rather than universally.

The places it usually earns its price are roundabout approaches, pedestrian crossings, bus stop boxes, concrete aprons and any location where vehicles brake, turn or stand repeatedly on the same piece of marking.

Site discipline is the practical limit on MMA. The resin and hardener must be mixed in the correct proportion and used within a working window that shortens as the temperature rises. In UAE summer conditions that window can be very short indeed, which makes MMA a material for planned, well supervised work rather than for improvised repairs at the end of a shift.

Choosing by Traffic Volume and Substrate

A workable decision rule starts with two questions. How much traffic will cross this marking, and what is it being laid onto. Traffic volume sets the minimum material depth you need. Substrate decides whether adhesion will be straightforward or will need help.

On asphalt carrying heavy traffic, thermoplastic is the working answer, with MMA reserved for the stress points within the same scheme. On concrete, MMA moves from optional to preferred, and thermoplastic needs a properly matched primer and mechanical preparation to compete. On interior floors, in car parks and in any layout that will be revised within a year or two, cold paint is both cheaper and easier to remove later.

One more factor belongs in the decision. If the marking sits inside a live carriageway, set time affects the cost of every future intervention. Choose the material that lets you hand the lane back quickly, and you reduce the cost of every remarking cycle for the life of the road. Our road line marking service page sets out how these choices apply by site type.

Programme should influence the decision as much as engineering does. If the road is due for resurfacing within two years, spending on a marking designed to last six is money that will be milled away. Equally, choosing cold paint on a carriageway that will not be touched for a decade guarantees repeated closures that each cost more than the material being installed. Match the marking life to the surfacing life and most of the decision makes itself.

Where the layout is permanent and the traffic is heavy, a thermoplastic paint road marking remains the sensible default.

A working selection guide by site type and substrate

Conclusion

There is no single best road marking material, only a best fit for the traffic, the substrate and the intended life of the layout. Cold paint suits temporary and low wear work. A thermoplastic paint road marking suits almost everything on a public carriageway in the UAE. MMA earns its cost at the stress points. Get the match right at specification stage and you avoid the far larger cost of remarking early. Speak to Revive Middle East Paints about the right material for your scheme.
